    Stainless Steel Flange Industrial Pipe Fittings ASTM A182-F304 F316L ANSI B16.5

    Ask Lasest Price
    Brand Name : HAOSTEEL
    Model Number : HS304/304l/316/316l Nickel alloy Carbon steel
    Certification : ISO9001,API,CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500tons per month
    Delivery Time : 5-10 working days after order confirmed and receive deposit
    • Product Details
    • Company Profile

    Stainless Steel Flange Industrial Pipe Fittings ASTM A182-F304 F316L ANSI B16.5

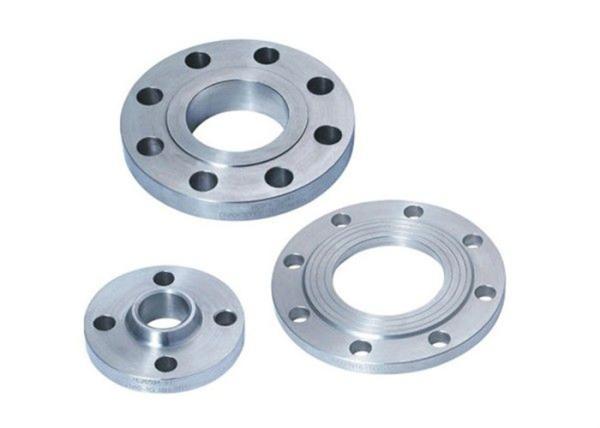

    Stainless Steel Flange ASTM A182-F304 F304L F316 F316L ANSI B16.5

    Description:

    The flanges are the parts that connect the pipes to each other.Also used on equipment inlet and outlet flanges for connection between two devices, such as reducer flanges.Flange connection or flange joint refers to the detachable connection of flange, gasket and bolt as a group of sealing structures.
    Pipe flange shall mean the flange of pipe fitting, and shall mean the import and export flange of the equipment.There are holes in the flanges and bolts make the two flanges tighten.Gasket seals between flanges.Flange tapping connection (screw connection) flange, welding flange and clamp flange, flange is used in pairs.
    According to the industrial standard of chemical industry (HG), there are integral flange (IF), screw flange (Th), plate welding flange (PL), neck welding flange (WN), neck welding flange (SO), socket welding flange (SW), butt welding ring loose flange (PJ/SE), PJ/RJ, lining flange cover (S), and BL.


    Product Range:

    Stainless steel tee, stainless steel elbow, stainless steel flange, stainless steel head, concentric reducer, threaded branch, threaded union, threaded cap, socket welded pipe, threaded 90 degree elbow, socket weld 90 degree elbow, socket welding 45 degree elbow, blind plate, stainless steel welded pipe 321, stainless steel welded pipe 316, stainless steel welded pipe 310S, stainless steel coil, 304 (304L) urea grade stainless steel, stainless steel sanitary pipe, stainless steel polished pipe, stainless steel sanitary Grade tube, duplex stainless steel tube, Monel alloy, Inconel alloy, Hastelloy alloy, stainless steel seamless tube, equal tee, stainless steel square tube, stainless steel shaped tube, stainless steel flange, concentric reducer, eccentricity, 180 degree stainless steel Elbow, stainless steel sanitary elbow, stainless steel mirror tube, neck butt weld flange, stainless steel size head, stainless steel rectangular tube, stainless steel industrial tube, stainless steel precision bright tube, stainless steel capillary tube, stainless steel coated tube.

    Futures:
    Main material: 304 (0Crr18Ni9)
    Product characteristics: Good corrosion resistance, heat resistance, low temperature strength and mechanical properties. Good hot workability such as stamping and bending.
    Product use: household appliances, auto parts, medical equipment, building materials, chemicals, food industry, agriculture, marine, atomic energy equipment.
    Product specifications: outer diameter: 6-762mm, wall thickness is clean coal, maximum length: 18000mm, special specifications can be negotiated.

    The stainless steel fluid tube is safe, reliable, hygienic and environmentally friendly, economical, and the pipe wall is thin, and the connection method is simple and convenient.
    Product Show:

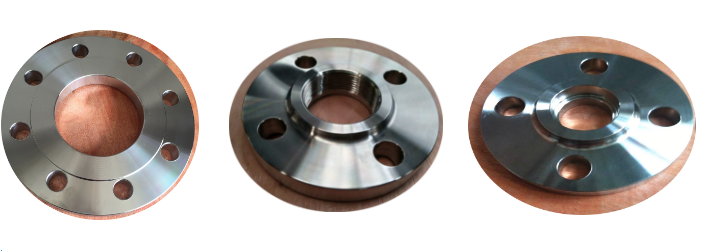

    Weld neck Slip on Blind

    Plate Threaded Socket Weld

    Lap Joint Stub End
    The whole range of Flanges:

    Porduct NameWeld neck flange, slip on flange, blind flange, tube sheet, threaded flange,socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange
    OD15mm-6000mm
    Pressure150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000
    StandardANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.
    Wall thickness

    SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,

    SCH80, SCH160,XXS and etc.

    Material

    Stainless steel:A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S,

    A182 F347H,A182 F316Ti, A182 F317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541,

    254Mo and etc.

    Carbon steel: A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60,

    A515 Gr 70 etc.

    Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,

    UNS32760, 1.4462,1.4410,1.4501 and etc.

    Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.

    Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276, Monel400, Alloy20 etc.

    Cr-Mo alloy: A182 F11,A182 F5, A182 F22, A182 F91, A182 F9, 16mo3 etc.

    Application

    Petrochemical industy;avation and aerospace industry;pharmaceutical industry;

    gas exhaust;power plant;ship buliding;water treament,etc.
