    Marine Engineering Oil Gas Nickel Alloy 625 Pipe , Industry Nickel Steel Alloy Tube

    Ask Lasest Price
    Brand Name : haosteel
    Model Number : Alloy 625
    Certification : SGS, BV, CCIC
    • Product Details
    • Company Profile

    Marine Engineering Oil Gas Nickel Alloy 625 Pipe , Industry Nickel Steel Alloy Tube

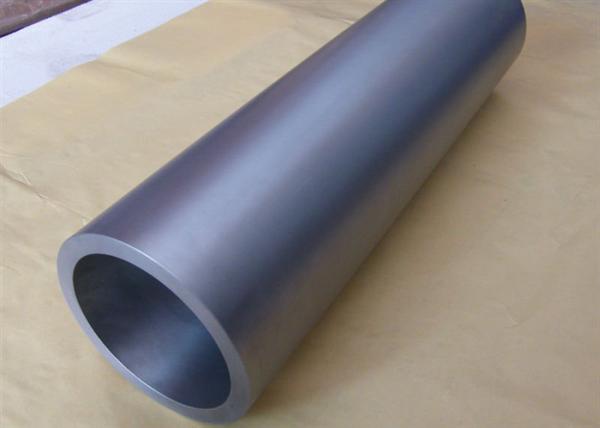

    Nickel alloy 625 pipe tube for marine engineering oil & gas industry

    Product Description:

    Alloy 625 (UN N06625) is a kind of austenitic nickel-based super alloy, in a wide range of corrosive environment with excellent oxidation resistance, corrosion resistance, crack resistance, anti-corrosion of chromium and molybdenum content on the corrosion of chlorine ion has excellent corrosion resistance, the alloy was developed for high temperature strength, its high alloy components to a wide range of oxidation and oxidation environment provides a high level of corrosion resistance to chloride stress corrosion cracking resistance.
    Includes the jet engine environment and many other seawater applications, aviation components, chemical treatment equipment, nuclear water reaction components and chemical process applications.
    The alloy 625 has excellent strength and toughness. The strength of the alloy 625 comes from the solid solution strengthening effect of molybdenum and niobium on nickel-chromium matrix.
    From low temperature to 2000 F (1093 C).
    The alloy 625 also has special fatigue resistance.
    High temperature resistance, used in arc and flame spray systems, produces a dense, cohesive coating resistant to high temperature oxidation and corrosion. These elements also contribute to corrosion resistance of the alloy.

    Standard:

    ProductASTM
    Alloy Bar, RodB408 , B581
    Alloy Thick Plate, Thin Sheet, Coil StripA240 , A 480 , B409 , B582 , B906
    Alloy Seamless Tube and Pipe FittingsB407, B622 , B829
    Alloy Welded Normal Bore Pipe ANSIB514 , B619 , B775
    Alloy Welded PipeB515 , B626 , B751
    Alloy Welded Pipe FittingsB366
    Alloy Forged or rolled pipe flange and forgedB462 , B 564
    Alloy Forged or rolled billetB472

    Inconel 625 Chemical composition:

    Alloy%NiCrMoNb+NFeAlTiCMnSiCuPS
    625Min.582083.15
    Max.23104.1550.40.40.10.50.50.50.0150.015

    Inconel 625 Pysical properties:

    Density8.4 g/cm³
    Melting point1290-1350°C

    Inconel 625 Alloy minimummechanical properties in the room temperature:

    Alloy

    State

    Tensile strength
    Rm N/mm²
    Yield strength
    R P0. 2N/mm²

    Elongation

    A 5 %

    Brinell hardness
    HB
    62576034530≤220

    Inconel 625 Typical application field as below:
    1 .The Organic chemical process parts contains chloride, especially in the use of acid chloride catalyst.
    2. The digester and bleacherin the use of paper pulp and paper making industry.
    3. Absorption tower, re-heater,gas import board, fan, blender, fair water fin, flue and so on for using in flue gas desulfurization system.
    4. The equipment and parts in the use of acidic gas environments.
    5. Acetic acid and anhydride reaction generator
    6. Sulfur acid cooling
