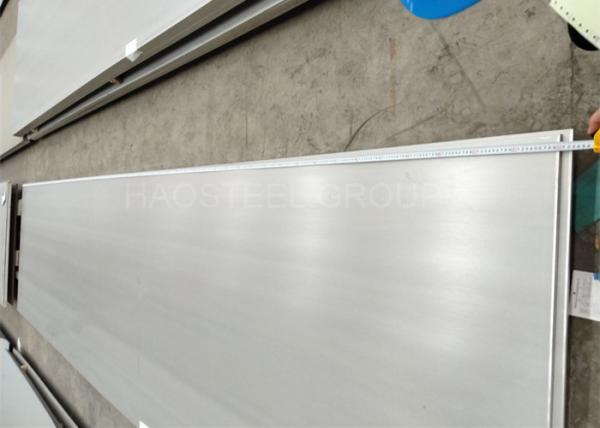

410 410S stainless steel plate hot rolled all sizes can be provided
in mill finish
SUS410 is a nickel-free stainless steel, which is martensitic
stainless steel. It has good hardenability, high hardness,
toughness, good corrosion resistance, heat strength and cold
deformation, and good shock absorption. High temperature or low
temperature tempering is required, but tempering should be avoided
between 370 and 560 °C.
SUS410 is the Japanese brand; 1Cr13 is the corresponding Chinese
brand; X10Cr13 is the corresponding German brand; 410 is the
corresponding US brand.
410 is only one member of the stainless steel family. For 410, it
is also divided into 0Cr13 and 1Cr13.
Which material is used depending on the application.
SUS410 (13Cr) has good corrosion resistance and machinability. For
general purpose steel, cutting steel. 410S is a steel grade that
improves the corrosion resistance and forming properties of 410
steel. 410F2 is a lead-cut steel that does not reduce the corrosion
resistance of 410 steel. 410J1 is a further improvement of 410
steel. High-strength steel grade with corrosion resistance. Used
for turbine blades and high temperature components.
SUS410 stainless steel features:
Because of its high strength and relatively light weight, stainless
steel is especially light-absorbing and safer than other metal
materials. It is a key material used in the automobile
transportation industry. In the United States, the annual
production of automobiles is more than 10 million. Each part of the
exhaust pipe only uses 40~50kg of ferritic steel. In the state of
use, it is made of stainless steel with ferrite structure. The
chromium content is between 11% and 30%, and has a body-centered
cubic crystal structure.
These steels generally do not contain nickel, and sometimes contain
a small amount of elements such as Mo, Ti, Nb, etc. These steels
are characterized by large thermal conductivity, small expansion
coefficient, good oxidation resistance and excellent resistance to
stress corrosion. Parts that are corroded by water vapor, water,
and oxidizing acids. Such steels have the disadvantages of poor
plasticity, post-weld plasticity and corrosion resistance, which
limit their application.
The application of refining technology (AOD or VOD) can greatly
reduce the gap elements such as carbon and nitrogen, thus making
this type of steel widely used. It has large thermal conductivity,
small expansion coefficient, good oxidation resistance and
excellent resistance to stress corrosion. The application of
external refining technology (AOD or VOD) can greatly reduce the
gap elements such as carbon and nitrogen. Uses: It is mostly used
to manufacture parts resistant to atmospheric, water vapor, water
and oxidative acid corrosion.
Advantages of SUS410 stainless steel:
The thermal conductivity is large, the expansion coefficient is
small, the oxidation resistance is good, and the stress corrosion
resistance is excellent. The application of external refining
technology (AOD or VOD) can greatly reduce the gap elements such as
carbon and nitrogen.
use:
It is mostly used to manufacture parts resistant to atmospheric,
water vapor, water and oxidizing acids.
Composition Specification (%)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| 410 | 0.15
max | 1.0
max | 1.0
max | 0.04
max | 0.03
max | min: 11.5 max: 13.5 | - | 0.75
max |
-
|
| 410S/L | 0.08
max | 1.0
max | 1.0
max | 0.04
max | 0.03
max | min: 11.5 max: 13.5 | - | 0.60
max | - |
Mechanical Property Specification
| Grade | Tensile Strength
ksi (min) | Yield Strength
0.2% ksi (min) | Elongation % | Hardness (HB) MAX |
| 410 | 450 | 205 | 20 | 217 |
| 410S/L | 415 | 205 | 22 | 183 |
Applications:
Used to manufacture parts resistant to atmospheric, water vapor,
water and oxidative acid corrosion
Export Packing:
1. Unit weight: 2-3tons per package or as client request.
2. Packing Type: strong wooden pallet and steel strip
reinforcement, or as clients' request.
