Hot New Products for Brushed Stainless Steel Pipe 304 304L 316 316L
HAOSTEEL is one of the most professional manufacturer and supplier
of stainless steel Tube.Stainless steel tube can be divided into
seamless tube and welded tube according to production mode.
Seamless tube can be divided into hot rolled tube, cold rolled
tube, cold drawn pipe and extruded tube.The welded pipe is divided
into straight welded pipe and spiral welded tube.
Description:
316L stainless steel features
1) cold rolled products have good gloss and beautiful appearance;
2) excellent corrosion resistance, especially pitting corrosion
resistance, due to the addition of Mo;
3) excellent high-temperature strength
4) excellent working hardenability (weak magnetism after
processing)
5) no magnetism in the solid solution state;
Mechanical properties of 316L stainless steel:
Tensile strength (Mpa) 485 MIN yield strength (Mpa) 170 MIN
elongation (%) 30 MIN area reduction (%) 40 MIN 316L stainless
steel density 7.98g/cm3, hardness HRB<90 HV<200 HBS<187
The corrosion resistance of 316 l stainless steel is better than
that of 304 stainless steel, in the process of pulp and paper
production has good corrosion resistance performance, often used in
pulp and papermaking equipment heat exchanger, dyeing equipment,
film processing equipment, pipelines, has good resistance to
chloride erosion performance, used in Marine environment, coastal
areas with outside the building materials, water equipment,
chemical, dyestuff, papermaking, oxalic acid and fertilizer
production equipment;Photo, food industry, coastal facilities,
ropes, CD rods, bolts, nuts.As well as advanced watch chain, case
and so on.
| Name | Stainless Steel Tube |
| Grade | 201 304 304L 316 316L 309s 310s 321 430 410 904L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Out-Diameter | 10-1175mm or as your requirements |
| Thickness | 0.3-50mmor as your requirements |
| Length | 1000-18000mm as your needs |
| Surface | No.1, 2B, BA, 8K Mirror, Hairline,satin,
Embossed,brush,No.4,HL,matt,pvc film,laser film. |
Chemical Composition about stainless steel Tube
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | - |

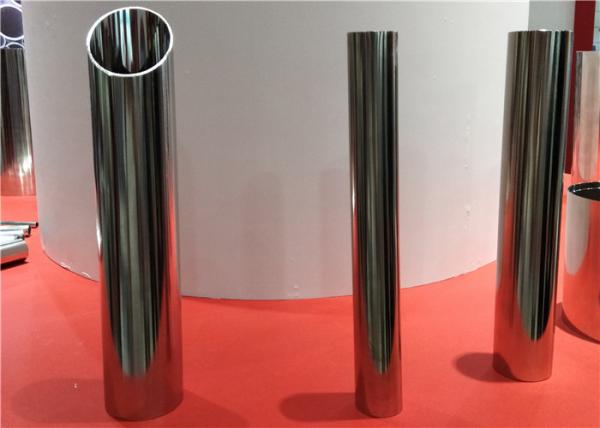

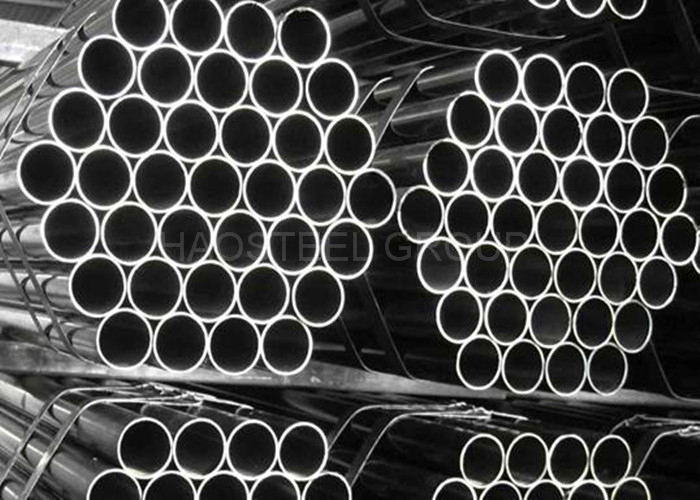

Product show
Stainless steels of various kinds are used in thousands of
applications.
1. Domestic - cutlery, sinks, saucepans, washing machine drums,
microwave oven liners, razor blades
2. Transport a exhaust systems, car trim/grilles, road tankers,
ship containers, ships chemical tankers, refuse vehicles
3. Oil and Gas - platform accommodation, cable trays, subsea
pipelines.
4. Medical Surgical instruments, surgical implants, MRI scanners.
5. Food and Drink - Catering equipment, brewing, disilling, food
processing
6. Water - Water and sewage treatment, water tubing, hot water
tanks.
