Hot Rolled Stainless Steel Angle Bar A/P Finish 6m Length 304 304L
316 316L 321 310S
Product Information:

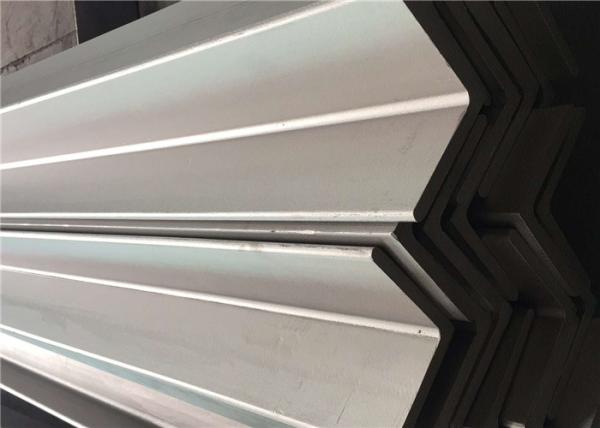

Stainless Steel Hot-Rolled Angle Bar
Specified length is 4, 5, 6m. Length Tolerance≤+40mm/pcs.
Shape: Right angle Tolerance is 90°±2°
Max Warp: 4mm/m. Whole body’s Max Warp≤0.4% length/pcs
Condition of Delivery: Austenite in Solution; Ferrite in Anneal; or
in accordance with customer’s detailed requirement.
Sufrace: Pickled or Sandblasting. Harmful defect is not permit to
be existed.
HAOSTEEL is one of the most professional manufacturer and supplier
of stainless steel angle bar.
Our factory is located in jiangsu province, more than 30 years
production and management experience, make us enjoy good evaluation
from clients all over the world. We have a whole stainless steel
angle bar production line and first-class staff to satisfy all
clients requirement.
Normal dimension and unit weight of angle bar.
A×B
mm | t mm |
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 20×20 | 0.894 | 1.13 | 1.38 | | | | | |
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | | | | |
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | | | | |
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | | | | |
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | | | | |
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | | | | |
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | | | 4.58 | 5.42 | 6.24 | 7.03 | | |
| 63×63 | | | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 |
| 70×70 | | | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 |
| 75×75 | | | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 |
| 80×80 | | | | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 |
| 90×90 | | | | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 |
| 100×100 | | | | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Material available in stock:
310S stainless steel angle bar
Features: 310S stainless steel is austenitic chromium nickel
stainless steel has good oxidation resistance, corrosion
resistance, because a higher percentage of chromium and nickel,
310S has much better creep strength, can continue working at high
temperatures, with good The high temperature resistance.
316L stainless steel angle bar
Features:
1) The appearance of the product is good and beautiful;
2) Due to the additional of Mo, corrosion resistance, especially
excellent resistance to pitting corrosion;
3) Excellent high temperature strength;
4) Excellent work hardening (weak magnetic after processing)
5) Non-magnetic in solid solution state;
316 stainless steel angle bar
Features: 316 stainless steel is the second most widely used steel
grade after 304. It is mainly used in food industry and surgical
equipment. Due to the addition of Mo, its corrosion resistance,
atmospheric corrosion resistance and high temperature strength are
particularly good. Can be used under harsh conditions; excellent
work hardening (non-magnetic).
321 stainless steel angle bar
Characteristics: Add Ti element in 304 steel to prevent grain
boundary corrosion, suitable for use at 430°C -900°C temperature.
In addition to the reduced risk of material weld rust due to the
addition of titanium, other properties are similar to 304.
304L stainless steel angle bar
Performance: 304L stainless steel angle steel is a variant of 304
stainless steel with low carbon content and is used in applications
where welding is required. The lower carbon content minimizes the
precipitation of carbides in the heat-affected zone near the weld,
and the precipitation of carbides may result in intergranular
corrosion of the stainless steel in some environments (weld
erosion).
304 stainless steel angle bar
Features: 304 stainless steel is the most widely used
chromium-nickel stainless steel, with good corrosion resistance,
heat resistance, low temperature strength and mechanical
properties. Corrosion resistance in the atmosphere, if industrial
atmosphere or heavily polluted areas, it needs to be cleaned in
time to avoid corrosion.
Other commonly used materials:
410,420,430,409,309S,2205,2207,630,631
