Factory direct supply 316ti 1.4571 stainless steel tube welded &
seamless pipe
HAOSTEEL is one of the most professional manufacturer and supplier
of stainless steel Tube.Stainless steel tube can be divided into
seamless tube and welded tube according to production mode.
Seamless tube can be divided into hot rolled tube, cold rolled
tube, cold drawn pipe and extruded tube.The welded pipe is divided
into straight welded pipe and spiral welded tube.
Description:
The Chinese brand of 316Ti stainless steel is 0Cr18Ni12Mo3Ti.New
brand is 06Cr17Ni12Mo2Ti stainless steel.With many excellent
properties such as corrosion resistance, it is a new type of
structural material with development prospect.It is suitable for
the corrosion resistance of various media such as sulphuric acid,
phosphoric acid, acetic acid and acetic acid.Titanium and its
alloys have been widely used in chemical industry, petroleum
industry, light industry, metallurgy industry and power generation
industry.
Chemical composition:
| Chemical composition | Element | 201 | 202 | 304 | 316 | S31803 | S32750 | 316Ti |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.030 | ≤0.030 | ≤0.08 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤0.80 | ≤1.00 |
| Mn | 5.5-7.5 | 7.5-10.0 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.20 | ≤2.00 |
| P | ≤0.060 | ≤0.060 | ≤0.045 | ≤0.045 | ≤0.030 | ≤0.035 | ≤0.035 |
| S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.020 | ≤0.020 | ≤0.03 |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | ≤16-19 |
| Ni | 3.5-5.5 | 4.0-6.0 | 42958 | 43022 | 4.5-6.5 | 6.0-8.0 | ≤11-14 |
| Mo | | | | 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | ≤1.8-2.5 |
| N | ≤0.25 | ≤0.25 | | | 0.08-0.2 | 0.24-0.32 | ≤0.1 |
| Ti | | | | | | | 0.5-0.7 |
| Mechanical properties | Material Item | 201 | 202 | 304 | 316 | S31803 | 316Ti |
| Tensile Strength (MPa) | ≥655 | ≥620 | ≥515 | ≥515 | ≥620 | ≥520 |
| Yield Strength (MPa) | ≥260 | ≥310 | ≥205 | ≥205 | ≥450 | ≥205 |
| Elongation (%) | ≥35 | ≥35 | ≥35 | ≥35 | ≥25 | ≥40 |
| Hardness (HV) | ≤230 | ≤230 | ≤200 | ≤200 | ≤303 | ≤200 |
Specification
| Material | SS201 SS301 SS304 SS316L SS316 SS316Ti SS304L |
| Surface Finish | 400G 500G 600G or 800G Mirror Finish,Golden Mirror Finish
180G,320G,400G Satin/Hairline Finish / Mill Finish |
| Thickness (mm) | 0.3~2.0mm |
| Packing | Each pipe packed into 1 pp bag
According to pipe size,few pipes packed into tight Nylon pack |
| Round pipe Size(mm) | Φ9.5 Φ12.7 Φ15.9 Φ19.1 Φ20 Φ22.2 Φ25.4 Φ30
Φ31.8 Φ38.1 Φ42.4 Φ45 Φ48 Φ50.8 Φ63.5
Φ76.2 Φ102 or customized |
| Square pipe Size(mm) | 13x13 15x15 20x20 25x25 30x30 38x38 40x40 50x50 60x60
80x80 or customized |
| Rectangle pipe Size(mm) | 20x5 30x5 40x5 50x5 10x10 20x10 30x10 40x10 50x10 15x25
20x40 15x30 20x30 50x30 25x38 25x50 30x60 40x80 60x80
45x75 45x95 50x100 60x120 60x40 or customized. |
Slotted Round pipe(mm)
(Double side or Single
side) | Φ38(15+15) Φ42.4(15+15) Φ42.4(20+15) Φ42.4(24+24)
Φ48.3(15+15) Φ48.3(20+32) Φ48.3(27+30) Φ50.8(15+15)
Φ50.8(20+20) Φ60(20+20) Φ60(25+25) Φ63.5(15+15)
Φ63.5(20+20) Φ63.5(23+24) Φ76(25+25) Φ76(38+45)
Φ76(25+25) or customized |
Slotted Square pipe(mm)
(Double side or Single
side) | 40x40(15+15)slot 40x40(20+20)slot 50x25(15+15)slot
50x50(15+15)slot 50x50(20+20)slot 60x40(15+15)slot
60x40(24+24)slot 75x45(35+25)slot 75x45(35+28)slot
25x21(14+14)slot 75x45(20+25)slot 75x45(25+25)slot |
Slotted Ellipse pipe(mm)
(Double side or Single
side) | Ellipse 80x40(24+24)slot Ellipse 110x40(33+26)slot Ellipse 60x40(20+20)slot Ellipse110x40(33+26)slot
Ellipse 87x65(24+38)slot Ellipse 93x57(25+25)slot
Ellipse100x52(45+40)slot or customized |

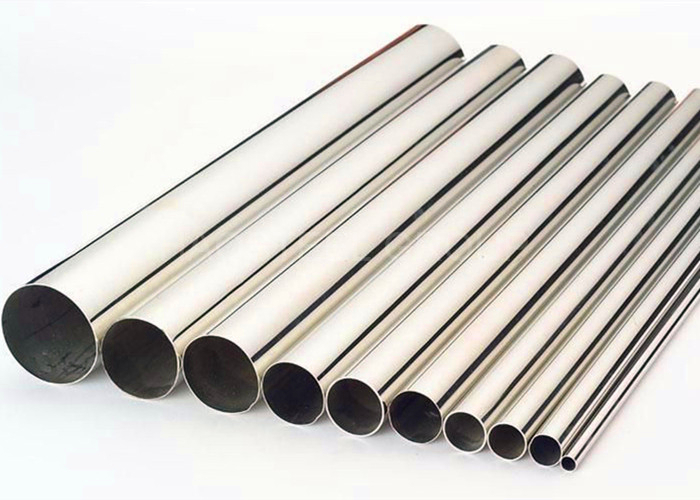

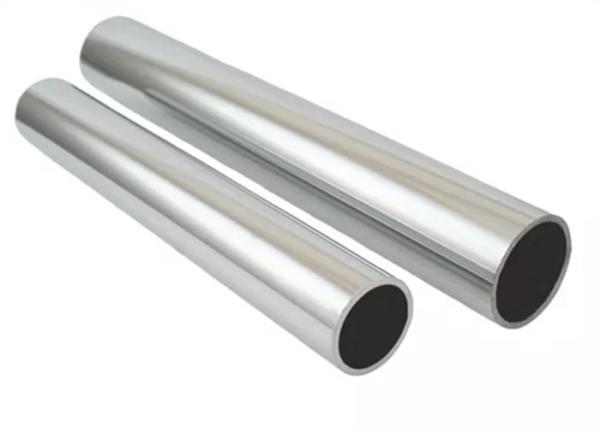

Product show:
Application
It is suitable for the corrosion resistance of various media such
as sulphuric acid, phosphoric acid, acetic acid and acetic
acid.Titanium and its alloys have been widely used in chemical
industry, petroleum industry, light industry, metallurgy industry
and power generation industry.
Our service
1) PERFECT QUALITY. All the SUS 304 production lines equipment are
new machines which can maintain the stable and better quality than
the whole market.
2) HIGH CORROSION RESISTANCE. With standard chemical compositions,
our pipes are able to last longer time than others.
3) BETTER STRETCH BENDING STRENGTH. All material are 100% virgin
raw material, no recycle material at all, which enhance our pipes
have better physical performance.
4) EXPERIENCE. Over 20 years of production experience of pipe
production, 10 years of exporting, we are able to full fill any
customers’ basis request and help them to enlarge the market sales.
