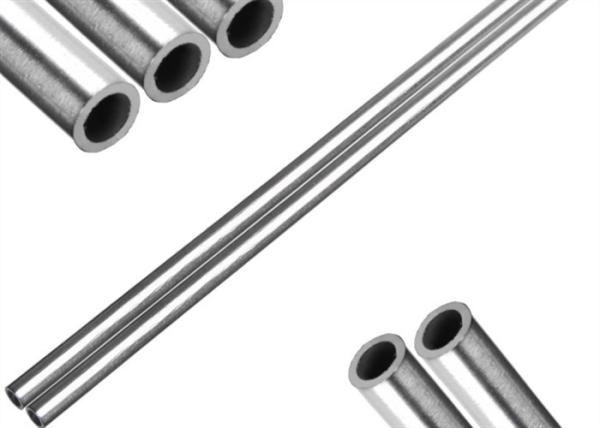

    Weld Seamless Stainless Steel Capillary Tube 0.26mm - 16mm OD Bright Polished Finish

    Ask Lasest Price
    Brand Name : HAOSTEEL
    Model Number : 347 904L 301 304 304L 316 316L 309S 310S 321 2205 2507
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 5000tons per month
    Delivery Time : 5-10 working days after order confirmed and receive deposit
    • Product Details
    • Company Profile

    Weld Seamless Stainless Steel Capillary Tube 0.26mm - 16mm OD Bright Polished Finish

    321 321H 310S 410 430 316L Stainless Steel Capillary Tube Pipe Supplier


    321 Stainless steel - it is titanium stabilized stainless steel grade from the austenitic family. It has the higher corrosion resistance ability and phenomenal resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range in temperature up to 427 deg C to 816 deg C. it has excellent oxidation resistance to 1500 deg F. moreover, it is known for higher stress to rupture and creep strength. 321 alloys have good low temperature properties and toughness.


    Stainless steel 321H- It has a higher carbon content of about 0.04 to 0.10%. It is developed to offer resistance to creep and higher strength up to 537 deg C. in most cases alloy meets the dual certification. SS 321H alloy can only be hardened by cold working operations, not by heat treatment operation. It is effectively welded and manufactured by standards machines.


    Stainless steel 321/321H

    Stainless Steel UNS S32100/S32109 Capillary Pipes Equivalent Grades


    STANDARDUNSWERKSTOFF NR.ENJIS
    SS 321S321001.4541X6CrNiTi18-10SUS 321
    SS 321HS321091.4878X12CrNiTi18-9SUS 321H

    321/321H Stainless Steel Capillary Pipes Chemical Composition

    GradeCMnSiPSCrNNiTi
    SS 3210.08 max2.0 max1.0 max0.045 max0.030 max17.00 - 19.000.10 max9.00 - 12.005(C+N) – 0.70 max
    SS 321H0.04 – 0.102.0 max1.0 max0.045 max0.030 max17.00 - 19.000.10 max9.00 – 12.004(C+N) – 0.70 max

    ASME SA312 SS TP321/TP321H Capillary Pipes Mechanical Properties

    Tensile StrengthYield Strength (0.2%Offset)ElongationHardness
    Rockwell B (HR B) maxBrinell (HB) max
    Psi – 75000, MPa – 515Psi – 30000, MPa – 20535 %95217


    Information:

    Name321 321H stainless steel capillary tube
    StandardASTM, DIN, GB, JIS,EN
    SizeOD: 0.8-16mm,
    WT: 0.1-2mm.
    Length: As Customer's Request
    Place of OriginShanghai,China (Mainland)
    Brand NameHAOSTEEL
    TypePipe Tube
    Applicationindustry, Chemical,etc
    CertificationISO
    TechniqueCold Rolled & Hot Cold
    Surfacepickling / 200grit/600grit/800grit polished/ mirror/ 6K/8K/bright etc.
    PackageWaterpro of packing or as Request.
    Price TermCIF CFR FOB EX-WORK
    Payment30%TT+70%TT / LC
    CertificateMTC
    Delivery Time

    15 days after the accept of advanced TT.
